For Order, please contact directly via email - medical@gentrexmedshop.com.au

***All Kirby Morgan KM 37 Diving Helmets are manufactured with 455 Balanced regulator. We offer to swap it for 350 SuperFlow regulator for a nominal fee of $100***

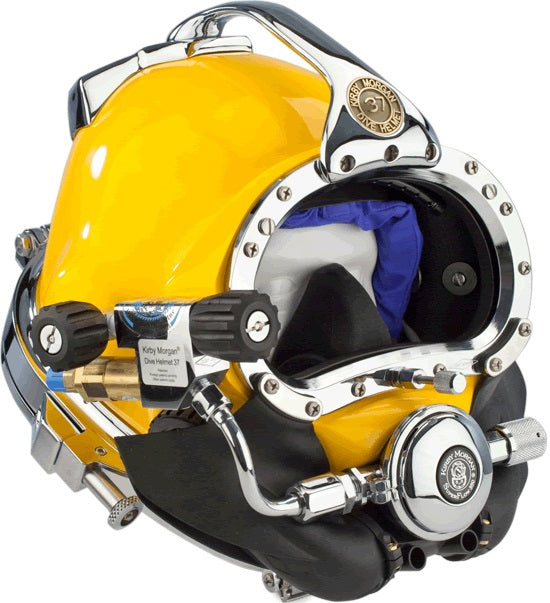

The Kirby Morgan 37 Diving Helmet comes standard with the Quad-Valve™ exhaust system, which has less breathing resistance than the older single valve exhaust while providing an extremely dry hat. This system is recommended for diving in biologically contaminated water. Our SuperFlow® 350 regulator is a proven design that provides excellent breathing characteristics over a wide range of depths. The Kirby Morgan 37 is one of the most popular designs in the world. It's considered the standard of the commercial diving industry, as well as the U.S. Navy. Choose the Kirby Morgan 37 if you want a rugged diving helmet with a traditional design.

Yellow colored helmet is usually in stock, other colors are made to order.

Technical Specs

• Weight: KM 37 - 32.6 pounds
• Helmet Shell: Fiberglass, polyester resin, polyester gel coat, and carbon fibers
• Control Knobs: Polyurethane
• Face Port/Lens: Scratch Resistant Polycarbonate
• Neck Dam: Neoprene. Optional latex neck dam available
• O-Rings: Buna-N

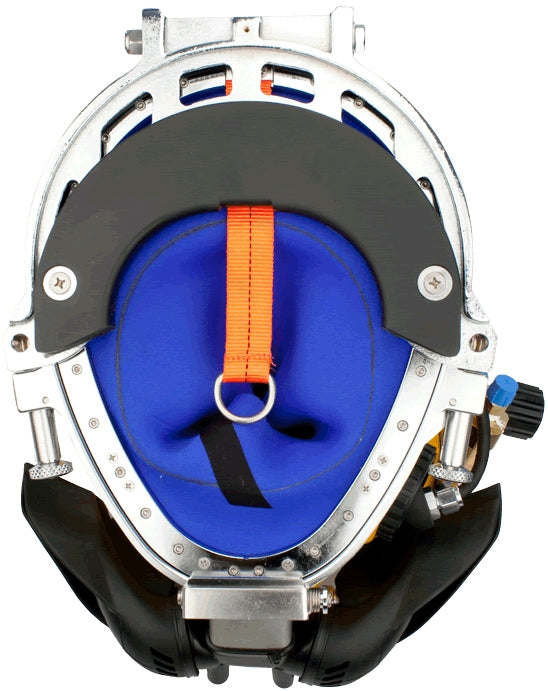

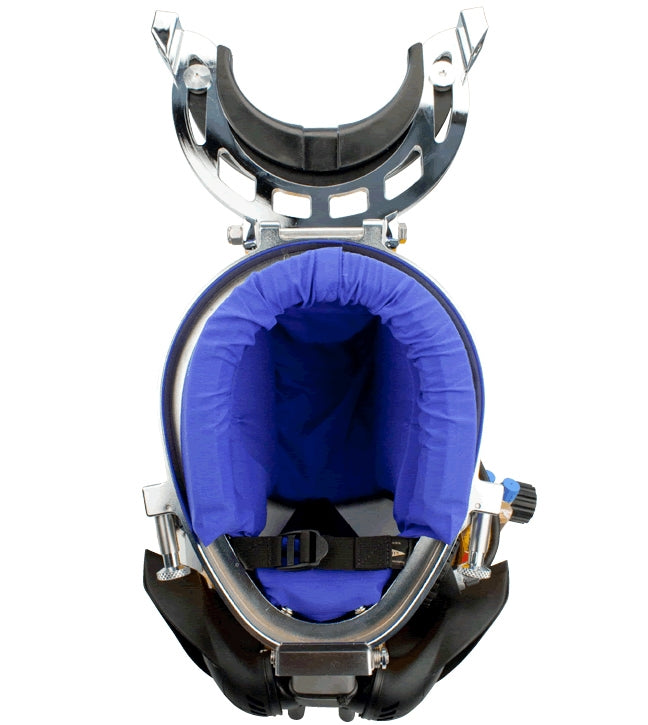

• Head Cushion: Nylon bag filled with #4 Polyester foam
• Recommended Lubricants: All helmets and masks are lubricated at the factory with Christo-Lube. Kirby Morgan recommends Christo-Lube or Tribolube for all gas train components. Dow Corning 111 Silicone or equivelent may be used for helmet and mask components that are used with gas mixtures containing less than 50% oxygen.

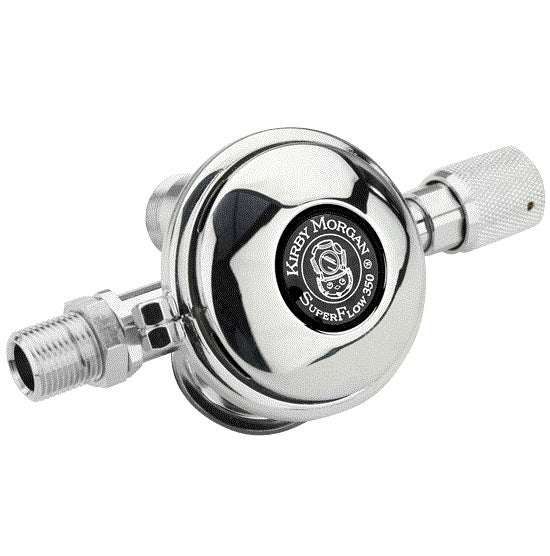

• Regulator: The SuperFlow 350 regulator on the Kirby Morgan 37 offers high performance. The regulator has been tested at Dive Lab at Panama City, Florida. It meets all current U.S. Navy and European diving standards.
• Cage Code: The cage code for identifying KMDSI products for U.S. government purposes is 58366.
• CR Standards: These helmets meet or exceed all standards established by Dive Lab of Panama City, Florida, and are CR (Commercially Rated) marked.
• CE Approved: The KM 37 helmet is CE Approved.
• Temperature Limitations: Use at water temperatures below 33 °F (1 °C) requires use of hot water shroud (P/N 525-100) and hot water.
• CE Certification: The Kirby Morgan 37 helmet has been tested and conforms to the performance requirements as set forth in Annex II of Directive 89/686/EEC and, as far as applicable, the EN 15333-1:2008/AC:2009 (class B). It is fully CE marked with demand regulator SuperFlow 350 and oral nasals P/N 510-690 and P/N 510-747 (now standard).
• Notes: The Hot Water Shroud (Part #525-100) in conjunction with hot water to the diver should be used whenever diving operations are conducted using HEO2 at water temperatures less than 60°F (15.56°C) for the comfort of the diver. KMDSI further recommends that the shroud be used in conjunction with hot water to the diver whenever diving operations are conducted using air or mixed gas, in waters colder than 36°F (2.22°C) to reduce the possibility of demand regulator icing.
• Usually the greatest danger of demand regulator icing will be encountered on deck when the surrounding air temperature is less than 32°F (0°C). This effect is primarily due to the refrigeration effect of breathing air pressure reduction, and the addition of moisture from the diver's exhalation coming in contact with the topside air temperature.
• If diving where the water temperature is 36°F (2.22°C) or warmer but the topside air temperature is below freezing, (32°F (0°C) icing of the demand regulator is possible. To help eliminate the possibility of freezing on the surface, warm water should be run over the exterior of the demand regulator prior to water entry, if the hot water system is not used.
• Only equipment certified and tested according to EN 250/E DIN 58 642 may be used with the KM 37 helmet when conducting diving operations in European EC compliant countries.
• The umbilical assembly should be composed of good quality diving hose that meets industry standards. Generally, gas hose will be married to the communications wire, pneumofathometer hose, and strength member in a manner that will allow the strength member to receive all the strain. There are also good quality umbilicals available that are assembled at the factory using a twisted method which does not require marrying. Regardless of the system used, the umbilical is the diver's life line and should always be of excellent quality and maintained carefully.
